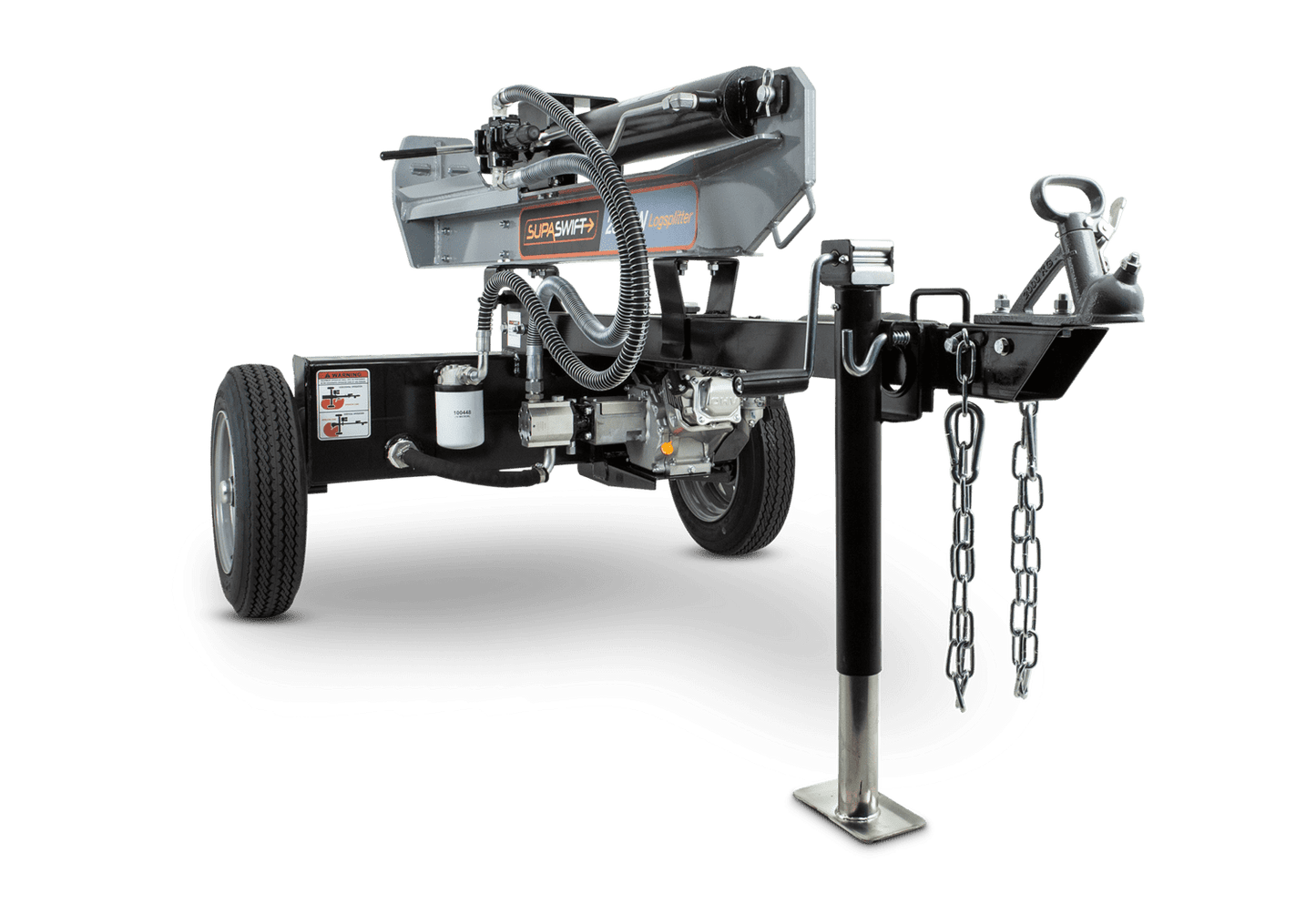

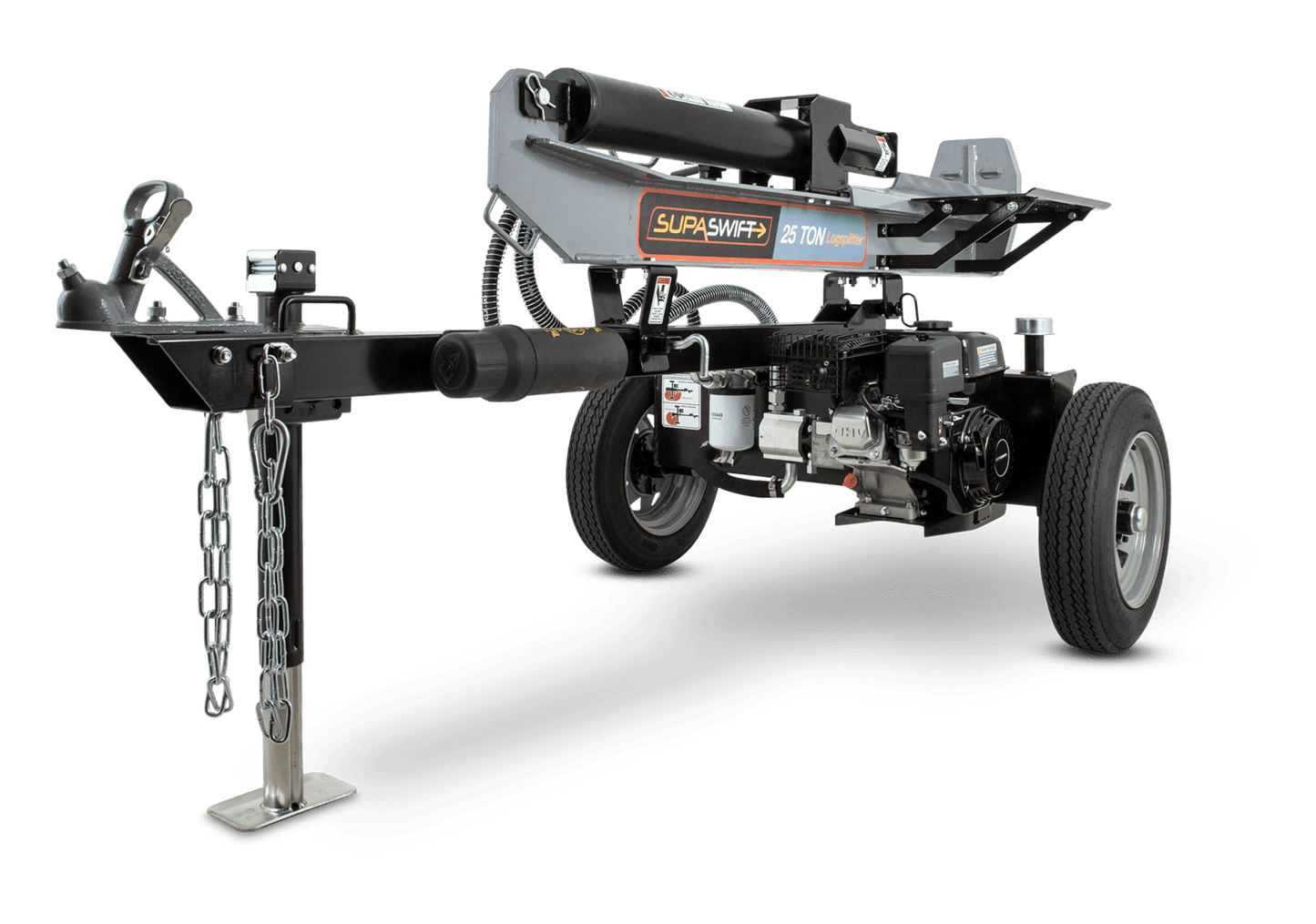

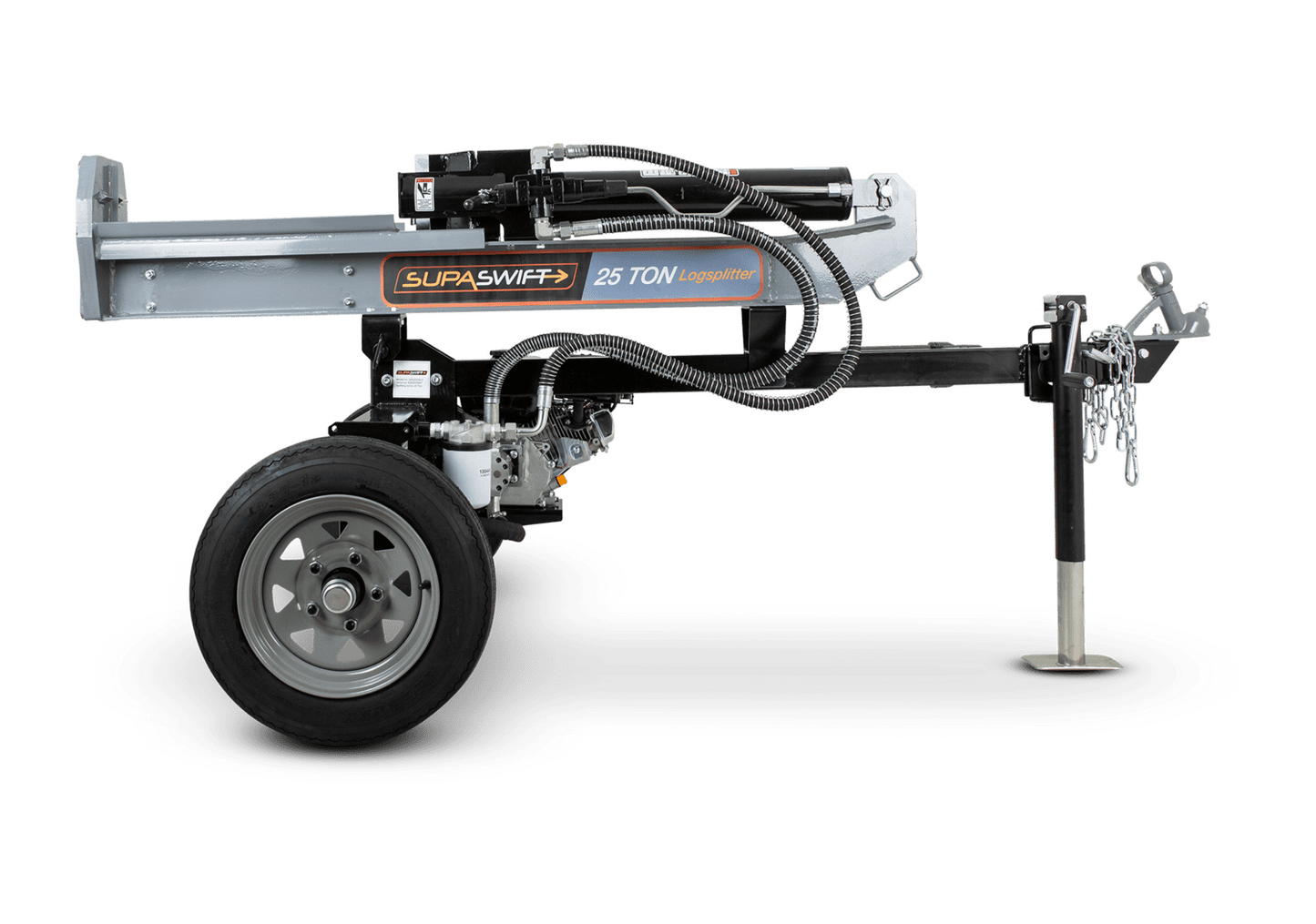

SupaSwift 525ALS 25-Ton Log Splitter

The SupaSwift 25-Ton log splitter provides quality and power at an affordable price. Fitted with a SupaSwift 6.5 hp (196 cc) engine, a manually activated auto return valve with an 10.9 second cycle time and quality features throughout this log splitter will provide many years of reliable service.

DETAILS:

• Quality Engine - SupaSwift 6.5 hp (196 cc) single cylinder, horizontal shaft OHV engine.
• Horizontal or vertical operation.
• 25 Tons of splitting force.
• Manually activated auto return valve.
• Two stage pump 13 GPM (49.21 litres per minute).
• Valve - Ergonomically positioned for operator comfort.
• Wedge: 8.5 " (215.9 mm) High angled heat treated steel.
• Wheels / Tyres*: 4.80" x 12" D.O.T certified.
• Beam: 8.5" (215.9 mm) Foot plate.

SPECEFICATIONS:

• 3 Year Domestic Warranty
• 3 Month Commercial Warranty
• 3 Month Hire/Rental Warranty
• Engine - SupaSwift 6.5 hp (196 cc) single cylinder, horizontal shaft OHV engine
• Hydraulic Ram Cylinder: (mm) -Outside: 114.3 mm x 609.6 mm stroke / Inside: 101.6 mm x 622.3 mm stroke
• Hydraulic Tank Capacity: (L) - 25.5 litres
• Maximum Log Length: (mm) -25" / 635 mm
• Pump: (L) - Two stage pump 13 GPM (49.21 litres per minute)
• Tow Hitch: (mm) - *2" (50 mm) ball hitch with safety chains - Aust style trailer bail hitch
• Wedge: (mm) - 8.5 " (215.9 mm) High angled heat treated steel
• Operating Position - Horizontal or vertical operation
• Capacity - 25 Tons of splitting force
• Valve - Manually activated auto return valve with adjustable detent
• Cycle Time - 10.9 seconds (down and back)
• Wheels / Tyres - *D.O.T approved 12" x 4.80" multi lug trailer wheel
• Beam (mm) - 8.5" Foot plate / 215.9 mm Foot plate
• Ram Size - 1.75" (44.45 mm)
